| Brand Name : | Zynshield |
| Model Number : | ZIPC13DC-Q |
| Certification : | CE, FCC, RoHS |
| Price : | 127USD/unit |
| Payment Terms : | T/T |
| Supply Ability : | 3000 pcs/month |
| Delivery Time : | 5~7 days |
Products Highlight
Fanless Passive Cooling: Zero noise operation
Ultra-Low Power: TDP of only 10W
Dual SO-DIMM Slots: Supports DDR4 3200MHz (compatible with 2400/2666MHz), max capacity 64GB
Quad 2.5GbE Ports: 4 x Intel i226-V RJ45 interfaces
Dual HDMI 2.0 Outputs: Supports up to 4096x2160@60Hz
Type-C Port (Multi-Function): 1 x USB Type-C supporting data and display output (4096x2160@60Hz); does not support power delivery (PD)
USB Ports: 4 x USB 2.0 ports; 1 x USB 3.0 port
M.2 Storage: 2 x M.2 Key M 2280 slots (PCIe 3.0 x1 signal) for NVMe SSDs
SATA Storage: 2 x SATA 3.0 (6Gbps) connectors, supports 2.5"/3.5" HDD/SSD power supply
Power Input: Supports dual power input methods: 12V DC Jack + Phoenix Terminal Block
Products Datasheet
| Product Model | ZIPC13DC-Q |
| Processor | Intel Celeron Elkhart Lake J6412/J6413 |
| Memory | 2*SO-DIMM DDR4 3200MHz(2400/2666MHz),UP to 64GB |
| Storage | 1*M.2 PCle 4.0 NVMex4|1*SATA 3.0 |
| Display Ports | 2*HDMI 2.01*Type-C |
| Front I/O | 1*Power on/off button;1*Hard drive indicator light;1*Power
indicator light;1*Type-C; *USB3.0;4*USB 2.0;1*TF;1*Reset CMOS key;2*HDMI 2.0 |

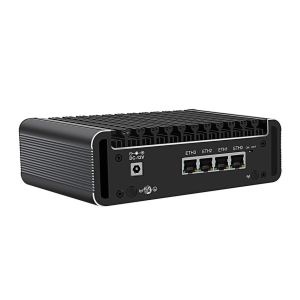

| Back I/O | 1*Grounding screw;1*DC-12V(55*25);2*WiFi antenna reserved hole 4*RJ45;1*Automatic dialing code for incoming calls |
| Expansion Bus | M.WiFi support extended to NVMe I SATA mSATA hard drive signals M.2×4 socket can expand 21314 M.2×1 sockets,share signal with SATA,choose one of the two |
| Ethernet Ports | 4*Intel i226-V 2.5GB |
| General Functions | Auto Start;Wake on LAN;PXE;Watchdog |
| Power Supply | DC12-19V(55mm*25mm) |
| Working Temperature | Work:-0~70℃;Storage:-0~70℃ |
| Environment Humidity | 5%~85%relative humidity,no condensation |
| Device Dimension | 178.3mm*125.2mm*55.0mm |
CPU Comparison
| J6412 | J6413 | |
| Cores | 4 | 4 |
| Threads | 4 (Hyper-Threading not supported) | 4 (Hyper-Threading not supported) |
| Max. Turbo Frequency | 2.60 GHz (All-core) | Single-core: 3.00 GHz All-core: 2.60 GHz |
| Cache | L2 Cache: 1.50 MB (No L3 Cache) | L2 Cache: 1.50 MB (No L3 Cache) |
| TDP | 10 W | 10 W |
Products Design
Proxmox VE (AIO Setup)
Run:
OpenWRT/OPNsense VM (with NIC passthrough)
Docker services (AdGuard/NAS)
Home Assistant/Windows
Note: M.2 NVMe & SATA share lanes → pick one
Dedicated Router OS
OpenWRT (lightweight + plugins)
OPNsense (pro firewall/VPN)
iKuai (Chinese UI + QoS)
Special Use:
Industrial: Debian + custom scripts (for auto-dial/watchdog)
Light NAS: CasaOS + OpenWRT Docker
| Component | Key Point |
|---|---|
| 4× i226 NICs | Full OS support |
| Storage | M.2 NVMe OR SATA (not both) |
| Auto-dial button | Needs custom development |
Maximize hardware: Proxmox VE
Simple routing: iKuai / OpenWRT
Security focus: OPNsense
Industrial use: Debian (customized)
Tip: Enable VT-x/SR-IOV in BIOS. Use Intel AX210 for WiFi.
Recomended Working Environment
4× 2.5GbE ports: Connect PLCs, sensors & HMIs simultaneously
Extreme temps: Operates in -0~70°C workshops (fanless, dust-proof)
Watchdog: Auto-reboots during failures
J6412/J6413 + NVMe: Run camera AI (defect detection/security)
Remote management: Wake-on-LAN/PXE for factory nodes
64GB RAM: Handles high-speed sensor data
Core switch: 4× 2.5GbE + WiFi6 expansion
4K NVR: Supports 4x 4K video feeds
SD-WAN node: WAN optimization via RJ45 ports
Triple 4K output: 2× HDMI + Type-C for synchronized displays
Outdoor-ready: Wide-temp durability (-0~70°C)
Silent operation: 10W fanless design
Dual storage: NVMe + SATA for real-time data analysis
Front I/O: 4× USB 2.0 + USB 3.0 + TF for probes/scanners
Mobile use: Type-C for field inspections
24/7 uptime: Watchdog + auto-power-on
Secure isolation: VLAN segmentation via multi-NIC
Compact size: Fits ATM/self-service terminals (178×125×55mm)
Packing and Accessories
The product includes: carton, machine, SATA cables and other wire harnesses, power adapter, spare screws, protective foam, and warranty card.
Shipping Solution
We offer three shipping options: DHL, UPS, and FedEx.
If you maintain your own DHL, UPS, or FedEx account, we can arrange shipping using your account at no additional charge.
If you have a designated freight forwarder in China, we will deliver the goods directly to your forwarder without extra fees. Furthermore, we will coordinate directly with your forwarder and prepare all necessary documentation.
For your reference in freight cost estimation, should you require product packaging dimensions and weight details, please feel free to contact us. We will respond to your inquiry promptly.
About Customization
All products can be customized according to your requirements, including:
Chassis (color, appearance, etc.)
Motherboard (number of Ethernet ports, chipset type, SIM card slot expansion, etc.)
Carton (logo customization)
The process is as follows:
| Phase | Stage | Key Activities & Deliverables |
|---|---|---|
| 1 | Inquiry | • Client submits detailed customization requirements |
| 2 | Requirements Confirmation | • Supplier provides feasibility previews • Client approves technical specifications |
| 3 | Feasibility Analysis | • Technical validation of design/production • Risk assessment report |
| 4 | Quotation | • Detailed cost breakdown • Production timeline with milestones |
| 5 | Place Order | • Contract execution with payment terms • Final requirement verification (double-check) |
| 6 | Mass Production | • Bulk manufacturing launch • Quality control during production |
| 7 | Pre-Delivery Audit | • Export documentation (HS code, invoice) • Declared value verification • Final QC inspection |
| 8 | Delivery & Support | • Logistics coordination • Real-time shipment tracking • Post-delivery support |
|
|
